Description
Rotary auger powder premade pouch packing machine
1.Introduction：
Product or packing bag contact parts adopt stainless steel or other materials which accord,with different feeders changed to pack different type of powder and granule,like albumen,milk,pesticide,cocoa,seasoning,powder Preformed bag made by film and paper.
2.Features：
1)Easy to operate，adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2)Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.
3)Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
3.Main techincal parameter:
1)Working position:Eight-working position
2)Pouch material:Laminated film
3)Pouch pattern:Flat, stand-up pouch with spout
4)Pouch size:W:100-260mm L:100-380mm
5)Speed:40-55 pouches/minutes
6)Weight:1300KGS
7)Voltage :380V 3phase 50HZ/60HZ
8)Total power:3KW
9)Compress air:0.6m3/min(supply by user)
10)Dimension:2600*1700*1900mm

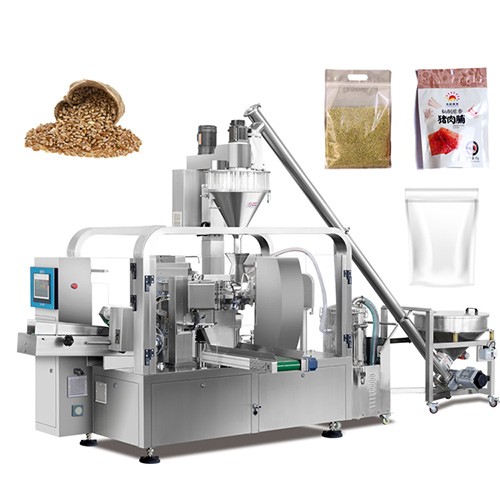

Rotary auger powder premade pouch packing machine picture for reference:
More information for rotary auger powder premade pouch packing machine,please browse Our youtube channel:https://www.youtube.com/watch?v=N5QBBDXvTTo&list=PLAijjmGaBBAz4jYhEow3abP3gL09qNGB0&index=11
