Description
Automatic PET Soy Sauce Gravity Filling Machine
1.Introduction：
PET Soy Sauce Bottle Gravity Filling Machine is suitable for packing with good fluidity. I uses vertical structure with constant liquid level and time which realize the precise filling. It is controlled by the PLC, human interface and easy operation. The machine is equipped with electric scale weight feedback system which makes the volume adjust easier.Meet with GDP standard.
2.Features:
1)This machine is equipped with weight feedback system. When changing the bottle size or filling volume, only press one key in the touch screen can be adjusted. Electric scale can transfer the data into the system and fine-tune have to be adjusted in the touch screen by man.
2)The latest designed bottle-chuck structure is adopted, convenient adjustment, and reliable structure.
3)Optimized Bottle-in and bottle-out control modes: Normal and fast. The fast mode has no delay in bottle-in and out which improves the capacity.
4)The material level sensor is used to check the level position under normal running of the machine,plus with high and low level check and alarm device. The level inspection device is made of PTFE, with perfect anti-corrosion feature.
3.Main Technical Parameters
1. Capacity : 4000-5000 bottles/hr. (500ml soy sauce as medium)
2. Applicable bottle: Diamention Φ33－100mm，Height 80－230mm
3. Volumes: 50-1000ml
4.Filling head:12
5. Precision: ±0.5%
6. Air pressure: 0.6～0.8 MPA
7. Power source: ～380V
8. Power: 1.0KW
9. External Diamention : 2000×710×2200mm (L×W×H)
1.Introduction：
PET Soy Sauce Bottle Gravity Filling Machine is suitable for packing with good fluidity. I uses vertical structure with constant liquid level and time which realize the precise filling. It is controlled by the PLC, human interface and easy operation. The machine is equipped with electric scale weight feedback system which makes the volume adjust easier.Meet with GDP standard.
2.Features:
1)This machine is equipped with weight feedback system. When changing the bottle size or filling volume, only press one key in the touch screen can be adjusted. Electric scale can transfer the data into the system and fine-tune have to be adjusted in the touch screen by man.
2)The latest designed bottle-chuck structure is adopted, convenient adjustment, and reliable structure.
3)Optimized Bottle-in and bottle-out control modes: Normal and fast. The fast mode has no delay in bottle-in and out which improves the capacity.
4)The material level sensor is used to check the level position under normal running of the machine,plus with high and low level check and alarm device. The level inspection device is made of PTFE, with perfect anti-corrosion feature.
3.Main Technical Parameters
1. Capacity : 4000-5000 bottles/hr. (500ml soy sauce as medium)
2. Applicable bottle: Diamention Φ33－100mm，Height 80－230mm
3. Volumes: 50-1000ml
4.Filling head:12
5. Precision: ±0.5%
6. Air pressure: 0.6～0.8 MPA
7. Power source: ～380V
8. Power: 1.0KW
9. External Diamention : 2000×710×2200mm (L×W×H)
10. Weight: about 480Kg

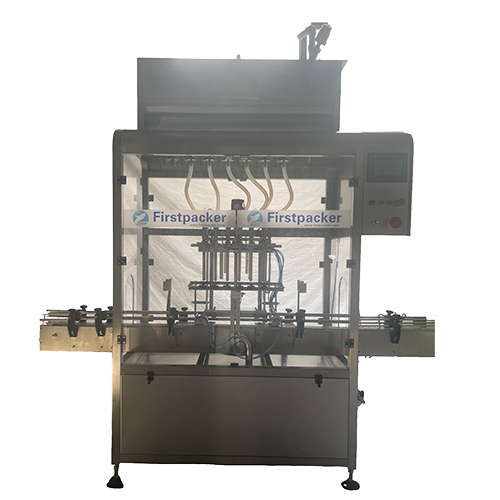

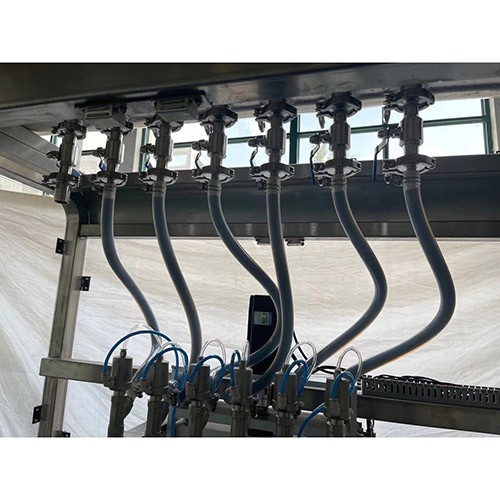

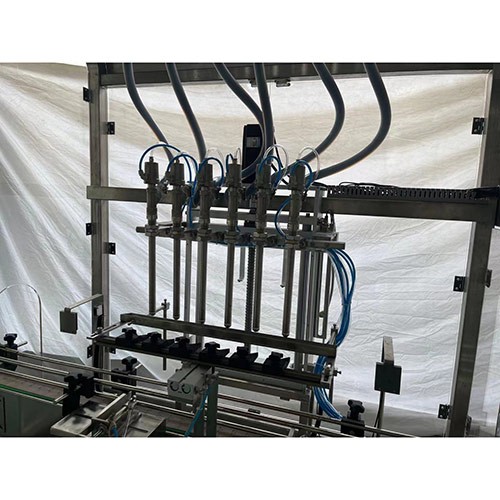

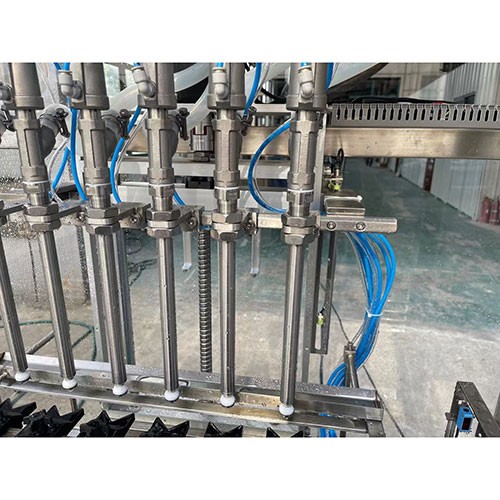

Automatic PET Soy Sauce Gravity Filling Machine picture for reference:
More information for Automatic PET Soy Sauce Gravity Filling Machine,please browse Our youtube channel:
