Description
high speed Syrup cartoning machine
1.Main Introduction:
1) The machine speed is fast,compact structure,easy to operate and onvenient maintenance.the apperance is unique,all external materials are made of stainless steel cover and high transparent plexiglass.
2) Mould and Guiding device all adopt independent change the carton only adjust the guide rails,and adjust conveninently.
3)The program uses PLC automatic monitoring,photoelectric detection mechanism,can be used for the lack of leaflet, plate(bottle) and box display,alarm and rejection, 100% output finished product,and auto-counting display on the screen.
4) The machine adopts the most relibale mechnical overload automatic protection device,which can protect itself when it occurs in operation,and aviods the damage of the machine.
5)Paper folding has stable performance,large adjustable range,low paper requirement,can be arbitrarily adjusted according to user needs.
2.Techincal parameter:
1).Production capacity：200-220 box/min
2).Box Quality requirements：300-350g/m (depends on the size of the carton )
3).size(L×W×H)：(70-200) mm× (25-84) mm× (15-70) mm
4).Leaflet Quality requirements 60-70g/m
5).Unfold leaflet size：(L×W)(100-260) ㎜ × (90-160) ㎜
6).Folded leaflet size：(1-4) (L×W) (100-260) ㎜ × (20-40) ㎜
7).Air pressure：0.5-0.7mpa
8).Consumption：700-900L/min
9).Air Consumption 380V 50HZ
10)Main motor power 4.0kw
11).Outline demesion (L×W×H) 4550 ㎜ ×1600 ㎜ ×1700 ㎜ (standard)
1.Main Introduction:
1) The machine speed is fast,compact structure,easy to operate and onvenient maintenance.the apperance is unique,all external materials are made of stainless steel cover and high transparent plexiglass.
2) Mould and Guiding device all adopt independent change the carton only adjust the guide rails,and adjust conveninently.
3)The program uses PLC automatic monitoring,photoelectric detection mechanism,can be used for the lack of leaflet, plate(bottle) and box display,alarm and rejection, 100% output finished product,and auto-counting display on the screen.
4) The machine adopts the most relibale mechnical overload automatic protection device,which can protect itself when it occurs in operation,and aviods the damage of the machine.
5)Paper folding has stable performance,large adjustable range,low paper requirement,can be arbitrarily adjusted according to user needs.
2.Techincal parameter:
1).Production capacity：200-220 box/min
2).Box Quality requirements：300-350g/m (depends on the size of the carton )
3).size(L×W×H)：(70-200) mm× (25-84) mm× (15-70) mm
4).Leaflet Quality requirements 60-70g/m
5).Unfold leaflet size：(L×W)(100-260) ㎜ × (90-160) ㎜
6).Folded leaflet size：(1-4) (L×W) (100-260) ㎜ × (20-40) ㎜
7).Air pressure：0.5-0.7mpa
8).Consumption：700-900L/min
9).Air Consumption 380V 50HZ
10)Main motor power 4.0kw
11).Outline demesion (L×W×H) 4550 ㎜ ×1600 ㎜ ×1700 ㎜ (standard)
12).Weight About 3000kg

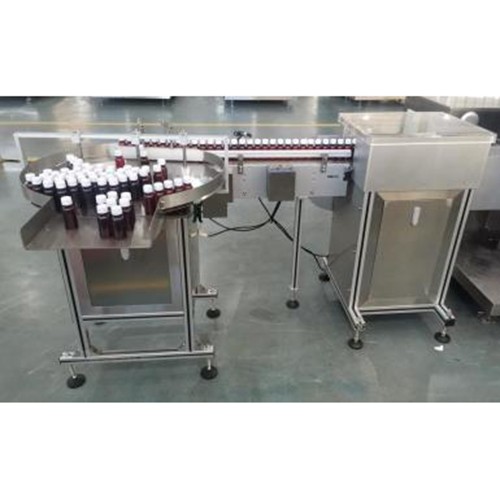

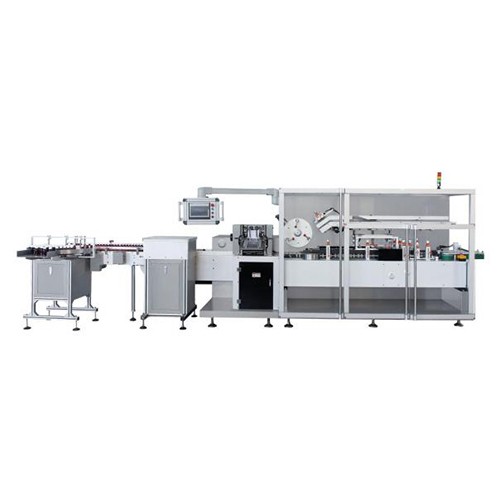

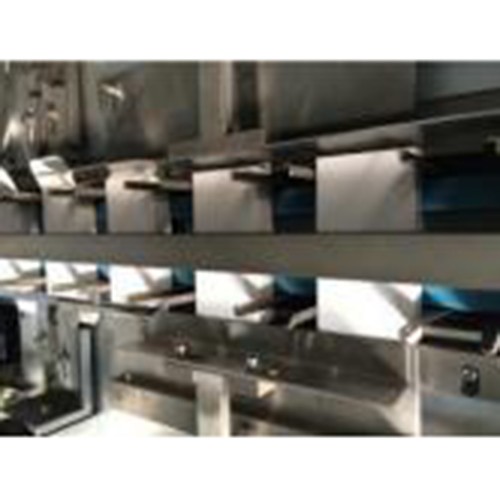

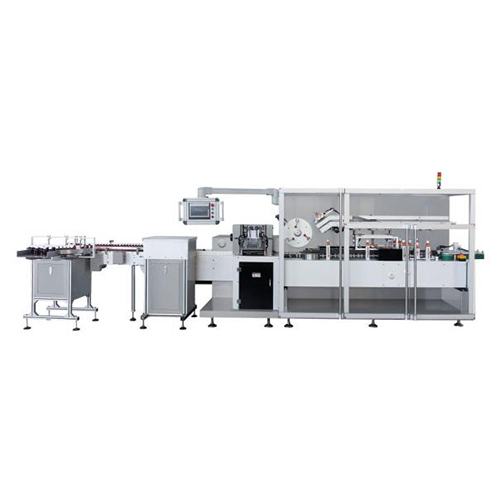

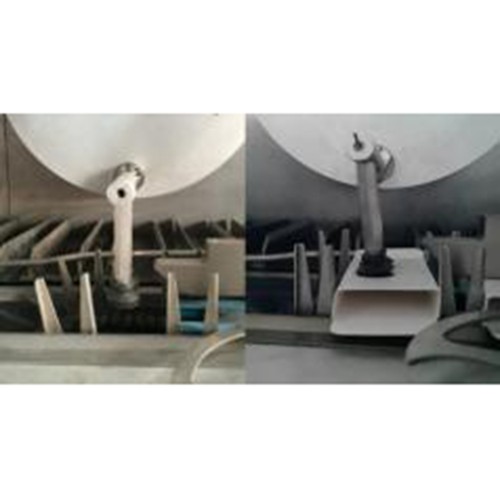

high speed Syrup cartoning machine picture for reference:
More information for high speed Syrup cartoning machine,please browse Our youtube channel:https://www.youtube.com/watch?v=Jd_rKbM1AVA&ab_channel=QinCheng
