Description
Lubricant oil tigthen Screw Capping Machine
1. Introduction

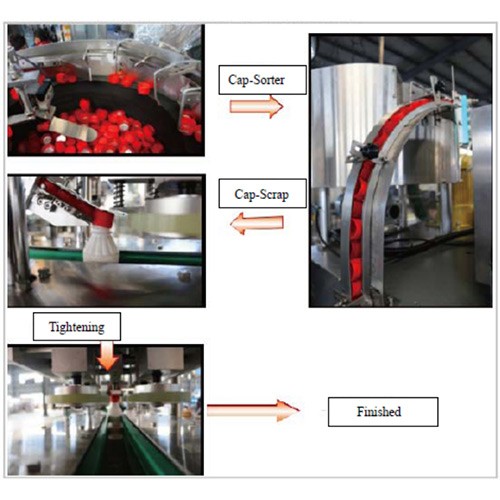

Lubricant oil tigthen Screw Capping Machine is making up with cap sorter, cap falling rail, bottle-tightening structure and capping wheels. By the tightening of the belts, the bottles finish the movement of cap scratch, push and capping. It applies to the capping of round and flat bottles. This capping machine is with easy structure and adjustment.
2. Main Features:
1) Wide range of applications: this model is an economical type and can meet pharmaceutical industries capping.
2)Whole machine uses Schneider brand which can make sure the stability of the machine.
3.Main Technical Parameters
1)Capacity：1500-4000 Bottles/hour
2) Applicable Bottle Diameter：Φ30－96mm Bottle height: 50－230mm
3)Cap Specification：Φ12-50mm Cap height: 15-40mm
4) Air Pressure：0.5～0.7 MPA
5)Power Source：～220V, 50HZ
6)Power：2.4 KW
7)Weight： 650KG
8)External Dimension：2000×1000×2100mm（L×W×H）
1. Introduction
Lubricant oil tigthen Screw Capping Machine is making up with cap sorter, cap falling rail, bottle-tightening structure and capping wheels. By the tightening of the belts, the bottles finish the movement of cap scratch, push and capping. It applies to the capping of round and flat bottles. This capping machine is with easy structure and adjustment.
2. Main Features:
1) Wide range of applications: this model is an economical type and can meet pharmaceutical industries capping.
2)Whole machine uses Schneider brand which can make sure the stability of the machine.
3.Main Technical Parameters
1)Capacity：1500-4000 Bottles/hour
2) Applicable Bottle Diameter：Φ30－96mm Bottle height: 50－230mm
3)Cap Specification：Φ12-50mm Cap height: 15-40mm
4) Air Pressure：0.5～0.7 MPA
5)Power Source：～220V, 50HZ
6)Power：2.4 KW
7)Weight： 650KG
8)External Dimension：2000×1000×2100mm（L×W×H）

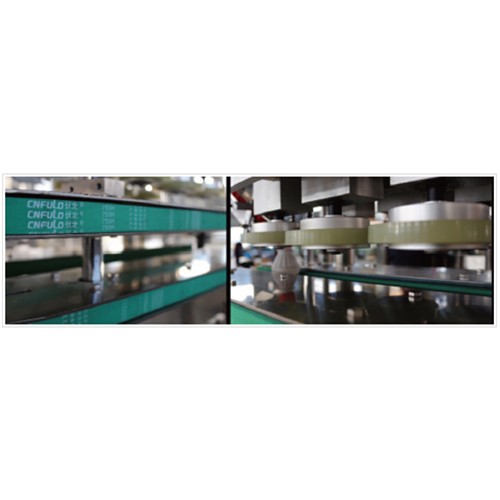

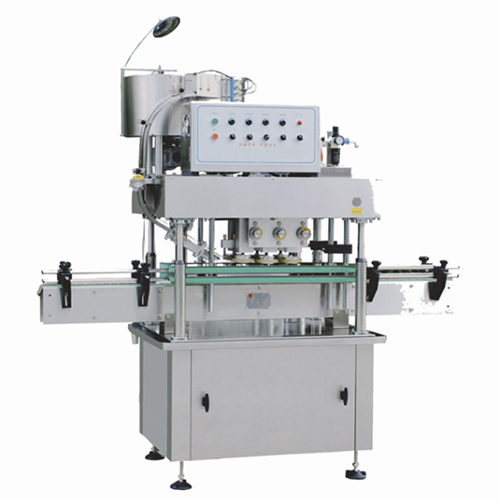

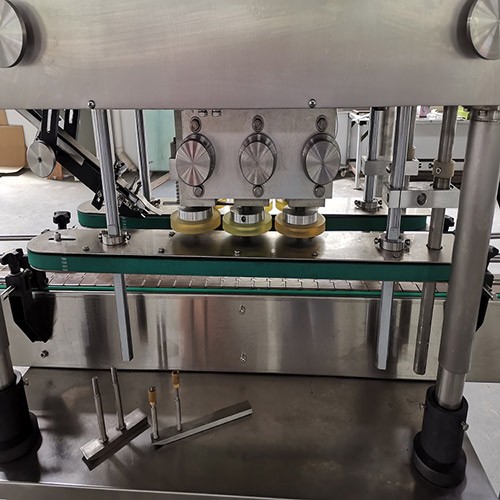

Lubricant oil tigthen Screw Capping Machine picture for reference:
More information for Lubricant oil tigthen Screw Capping Machine,Please browse Our youtube channel:https://www.youtube.com/watch?v=WU-xdmOSBsI&list=PLAijjmGaBBAzxMdqQ4m2_lgxly09tS0IX&index=134
