Description
Potato chips rotary doypack zipper pouch packing machine
1.Introduction：
Multi head weighing rotary pouch packing machine can packing all kinds of material such as solid,granule,powder,and other materials that can be packed by bag.can suit for types premade pouch,Standup bag,Portable bag, Zipper bag, and all kinds of compound bags.
2.Features：
1) High Automation: Complete all actions by end cam, whose machining technology is more simple than grooved cam, thus cost lower. The highest speed can reach 60pcs/min
2) Perfect Prevention System: when the bag is not open or not opened enough, it will be non-filling and non-sealing, so the empty bags return to the first station to refill and not wasted and it will save the production cost.
3.Main Technical Parameters：
1)Equipment Model：Multi head weighing premade pouch packing machine
2)Bag Size：W: 65~150mm L: 70~210mm(date coding requires≥ 140mm length)
3)Filling Range：5~2500g
4)Packing Speed：20~55Bags/min(depended on the product and filling weight)
5)Package Accuracy：Error≤±1%
6)Weight：2000kg
7)Dimension：1645mm*1645mm*1640mm (L,W,H)
8)Total Power：4kw
9)Driving Power Source：380V Three-phase Five-line 50HZ
10)Compressed Air Requirement：≥0.45m3/min(Compress air is provided by user)
1.Introduction：
Multi head weighing rotary pouch packing machine can packing all kinds of material such as solid,granule,powder,and other materials that can be packed by bag.can suit for types premade pouch,Standup bag,Portable bag, Zipper bag, and all kinds of compound bags.
2.Features：
1) High Automation: Complete all actions by end cam, whose machining technology is more simple than grooved cam, thus cost lower. The highest speed can reach 60pcs/min
2) Perfect Prevention System: when the bag is not open or not opened enough, it will be non-filling and non-sealing, so the empty bags return to the first station to refill and not wasted and it will save the production cost.
3.Main Technical Parameters：
1)Equipment Model：Multi head weighing premade pouch packing machine
2)Bag Size：W: 65~150mm L: 70~210mm(date coding requires≥ 140mm length)
3)Filling Range：5~2500g
4)Packing Speed：20~55Bags/min(depended on the product and filling weight)
5)Package Accuracy：Error≤±1%
6)Weight：2000kg
7)Dimension：1645mm*1645mm*1640mm (L,W,H)
8)Total Power：4kw
9)Driving Power Source：380V Three-phase Five-line 50HZ
10)Compressed Air Requirement：≥0.45m3/min(Compress air is provided by user)

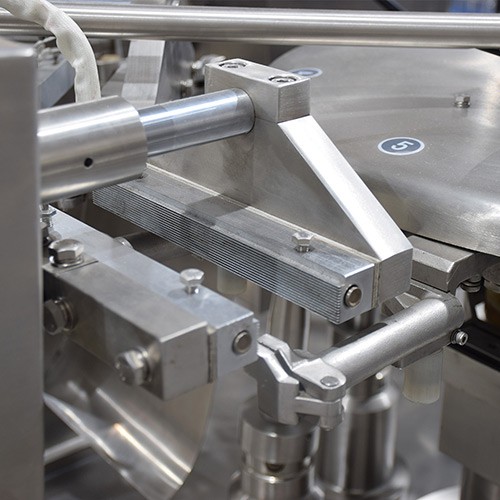

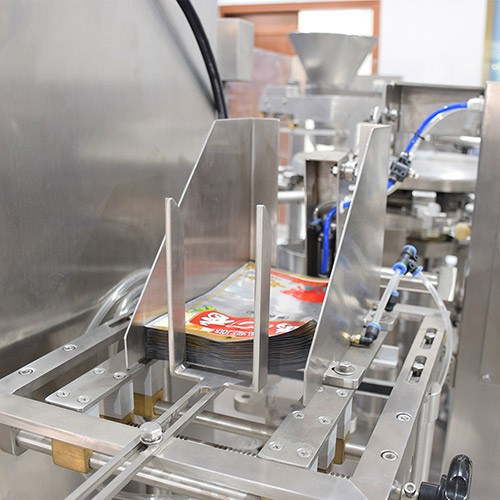

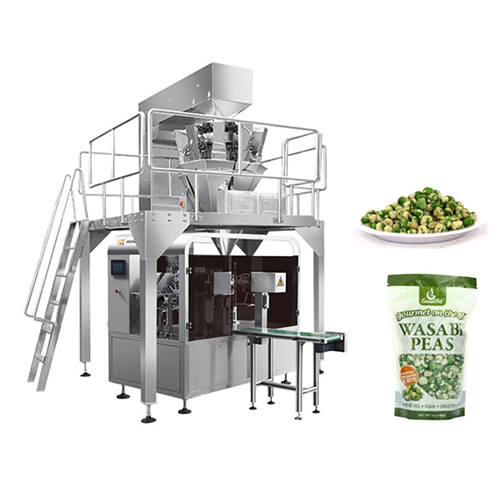

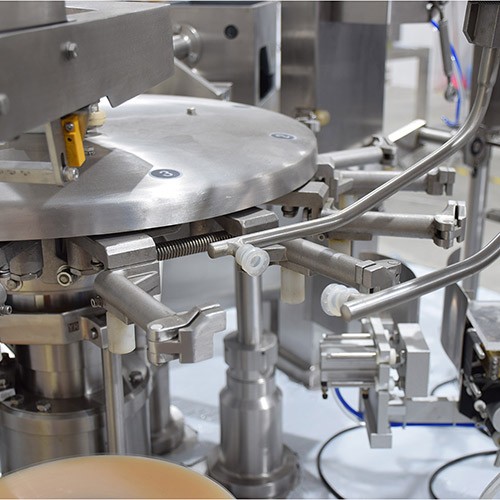

Potato chips rotary doypack zipper pouch packing machine picture:
More information for Potato chips rotary doypack zipper pouch packing machine,please browse Our youtube channel:https://www.youtube.com/watch?v=I49pf88HK4o&list=PLAijjmGaBBAz4jYhEow3abP3gL09qNGB0&index=32
