Description
Automatic 5kg-30kg Jerry can weight filling machine
1.Introduction：
Intellectual automatic 5kg-30kg weight filling machine The machine adopts linear bottle feeding, PLC program control, double cylinder bottle.can be suit for paint oil,lubricant oil,engine oil,anti freeze fluid and other different liquid.
2.Feature:
1)This type machine is used for 4kg -30 kg liquid filling.
2)This machine adopts PLC, touch screen control panel, convenient to adjust.
3)Each filling head has the weight and feedback system. Each filling head can be regulated.
4)Photoelectric sensor, approximate switch and other electric elements are the international famous brand.
3.Main Technical Parameter:
1)Capacity: 1000-2000 bottles/hr.（20KG water as medium）
2)Applicable Range: Φlength:160-3600mm*width:100-300mm * height:250-500mm Flat / Square Bottle
barrel neck diameter:≥Φ40mm(can be customized)
3)Filling Range:5L-50L
4)Filling head: 4 or 6 or 8(can be customized)
5)Precision：±0.5%
6)Air Pressure：0.6～0.8 MPa
7)Power Source：～380V、50Hz
8)Power：2.5KW
9)External Dimension：3800×1150×2300mm
10)Weight：About 2500Kg
1.Introduction：
Intellectual automatic 5kg-30kg weight filling machine The machine adopts linear bottle feeding, PLC program control, double cylinder bottle.can be suit for paint oil,lubricant oil,engine oil,anti freeze fluid and other different liquid.
2.Feature:
1)This type machine is used for 4kg -30 kg liquid filling.
2)This machine adopts PLC, touch screen control panel, convenient to adjust.
3)Each filling head has the weight and feedback system. Each filling head can be regulated.
4)Photoelectric sensor, approximate switch and other electric elements are the international famous brand.
3.Main Technical Parameter:
1)Capacity: 1000-2000 bottles/hr.（20KG water as medium）
2)Applicable Range: Φlength:160-3600mm*width:100-300mm * height:250-500mm Flat / Square Bottle
barrel neck diameter:≥Φ40mm(can be customized)
3)Filling Range:5L-50L
4)Filling head: 4 or 6 or 8(can be customized)
5)Precision：±0.5%
6)Air Pressure：0.6～0.8 MPa
7)Power Source：～380V、50Hz
8)Power：2.5KW
9)External Dimension：3800×1150×2300mm
10)Weight：About 2500Kg

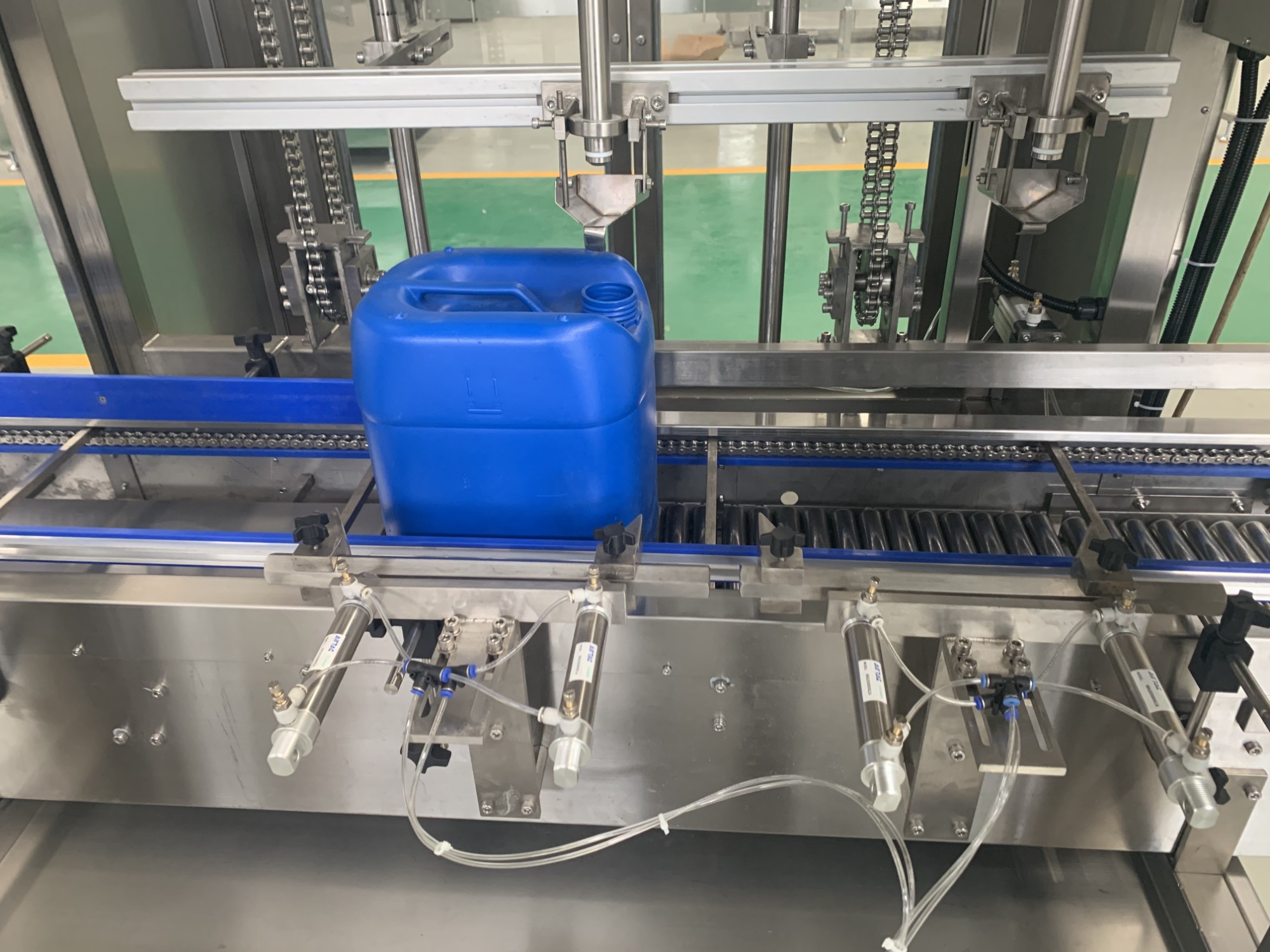

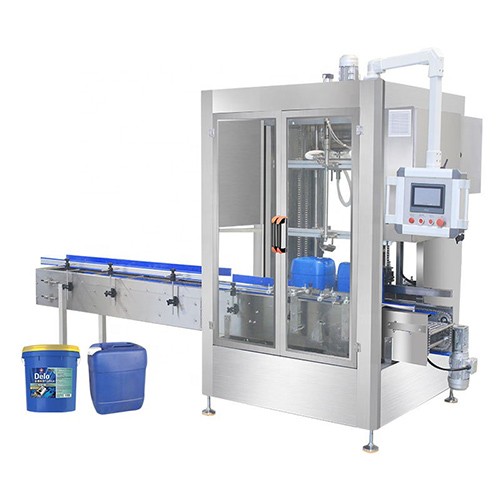

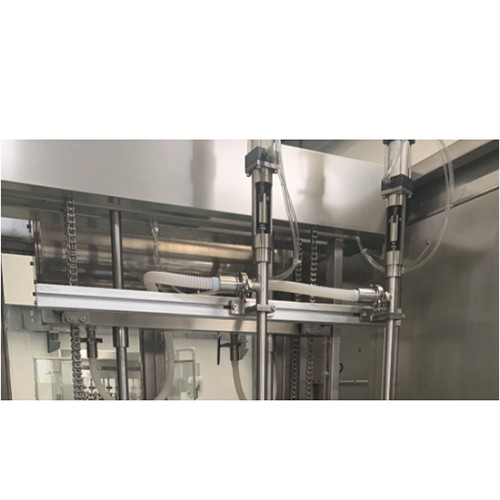

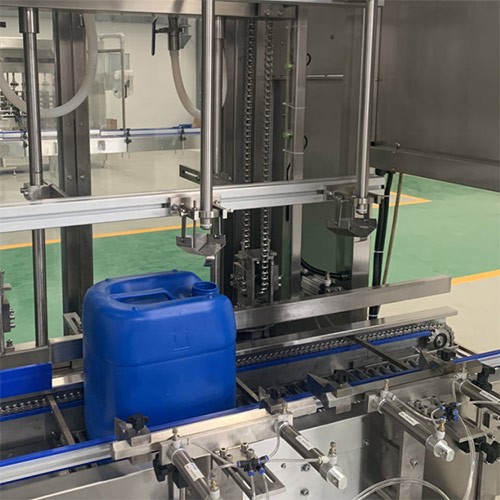

Automatic 5kg-30kg weight filling machine picture for reference:
More information for Automatic 5kg-30kg jerry can weight filling machine,please browse Our youtube channel:https://www.youtube.com/watch?v=Bog9bRwdDHM&list=PLAijjmGaBBAyxeDU8Wsoyzq12aca-AKxK&index=58
