Description
Double side self-adhesive labeling machine
1.Introduction：
double side Self Adhesive Labeling Machine is making up with the label pressure structure, picking-up mechanism, frame, bottle-separating structure, conveyor, adjusting structure and electrical cabinet. It is suitable for the two sides self-adhesive labeling of round and square bottles. For example, it uses for the two sides labeling of bottles.
2.Features：
2.1 It uses the press structure which makes the bottles are more stable when comes into the labeling zone. This will improve the precision of labeling

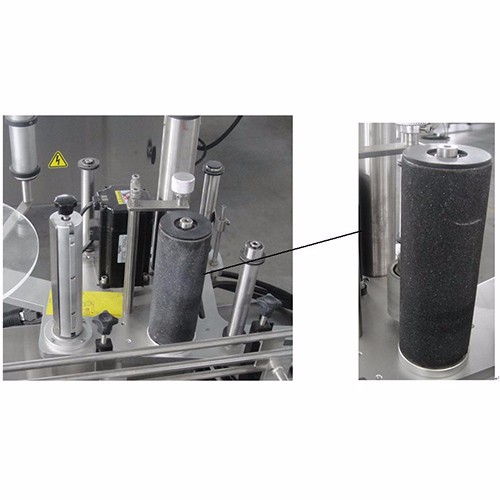

2.2 The soft brush and double pressure wheels at the bottle output side which makes the labels more flat and smooth.
3.Main Technical Parameters：
1. Applicable Container：L: 25-150mm、W: 40-135mm、H: 50-150mm
2. Label Height：20-140mm
3. Label Length：50-320mm
4. Labeling Precision：±1mm
5. Labeling Speed：≤150 bottles/min
6. Power Source：～220V、50HZ
7. Power：3KW
8. Weight：about 400KG
1.Introduction：
double side Self Adhesive Labeling Machine is making up with the label pressure structure, picking-up mechanism, frame, bottle-separating structure, conveyor, adjusting structure and electrical cabinet. It is suitable for the two sides self-adhesive labeling of round and square bottles. For example, it uses for the two sides labeling of bottles.
2.Features：
2.1 It uses the press structure which makes the bottles are more stable when comes into the labeling zone. This will improve the precision of labeling
2.2 The soft brush and double pressure wheels at the bottle output side which makes the labels more flat and smooth.
3.Main Technical Parameters：
1. Applicable Container：L: 25-150mm、W: 40-135mm、H: 50-150mm
2. Label Height：20-140mm
3. Label Length：50-320mm
4. Labeling Precision：±1mm
5. Labeling Speed：≤150 bottles/min
6. Power Source：～220V、50HZ
7. Power：3KW
8. Weight：about 400KG
9. External Dimension：2200×1600×1550(L×W×H)mm

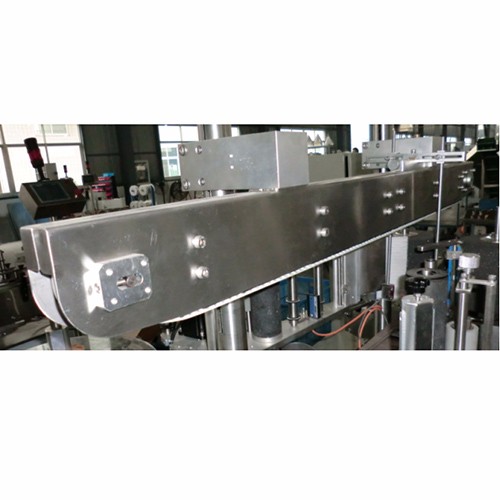

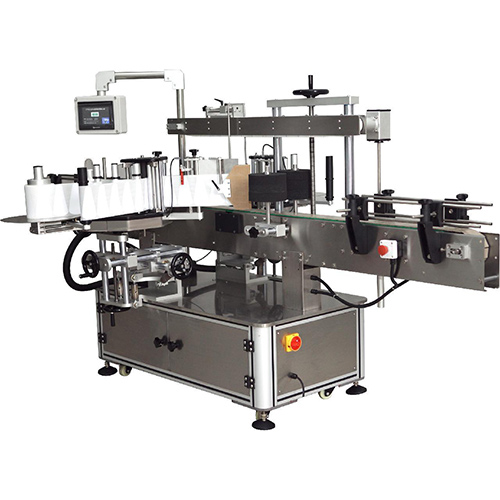

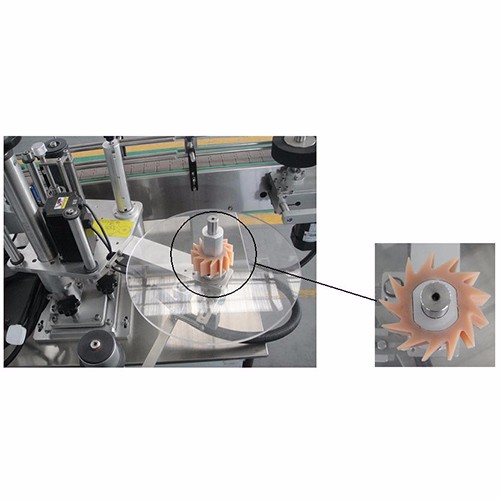

Double side labeling machine picture reference:
