Automatic Double Side Carton Box Corner Labeling Sealing Machine

Description

Antigen rapid testing kits boxes double side corner labeling machine
1.Introduction：

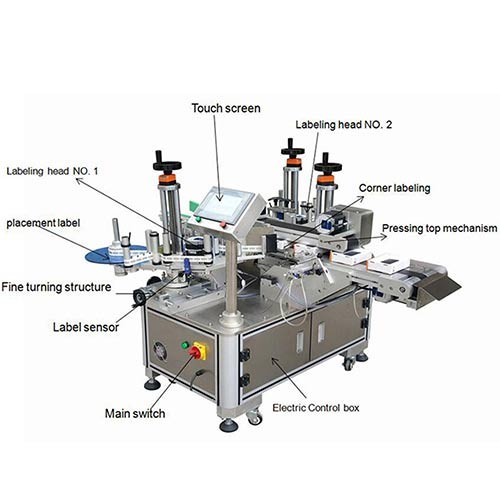

Antigen rapid testing kits boxes double side corner labeling machine is making up with the label pressure structure, picking-up mechanism, frame, boxes-separating structure, conveyor, adjusting structure and electrical cabinet. It is suitable for the  Antigen rapid testing kits of  square testing kits boxes.
2.Features：
2.1 It uses the press structure which makes the bottles are more stable when comes into the labeling zone. This will improve the precision of labeling

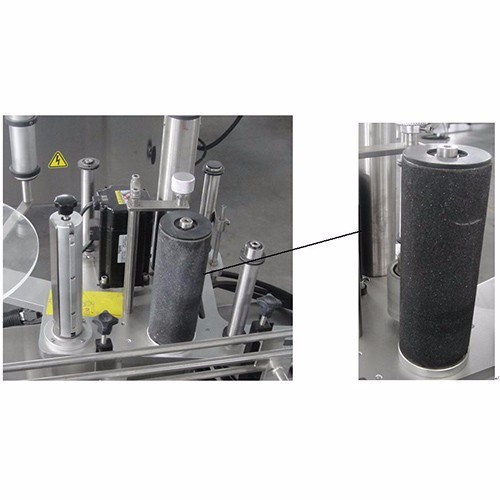

2.2 The soft brush and double pressure wheels at the bottle output side which makes the labels more flat and smooth.
3.Main Technical Parameters：
1. Applicable Container：L: 25-150mm、W: 40-135mm、H: 50-150mm
2. Label Height：20-140mm
3. Label Length：50-320mm
4. Labeling Precision：±1mm
5. Labeling Speed：≤150 bottles/min
6. Power Source：～220V、50HZ
7. Power：3KW
8. Weight：about 400KG
9. External Dimension：2200×1600×1550(L×W×H)mm

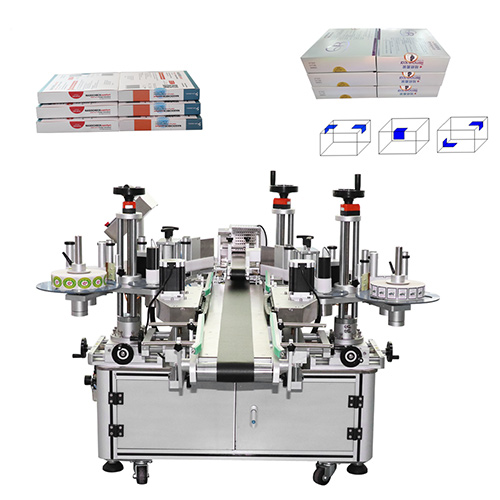

Antigen rapid testing kits boxes double side corner labeling machine picture reference:

More information for Antigen rapid testing kits boxes double side corner labeling machine,Please browse Our youtube channel:
