Description
double head shrink sleeve labeling machine
1.Introduction：
All-cover type stainless steel host machine:the whole machine is waterproof as well as rustproof,Adjustable cutter head:unquely cyclotron cut-off,double sided cutting edge with a long service life.
2.Features：
1).Doubel head PVC shrink sleeve labeling machine can label bottle body and neck at the same time,which can reach max.capacity of 2*450 bottle per minute.
2).Double head shrink sleeve labeling machine can be used in two ways.It not only reduces a trapping label machine,but also proves as cost effective for our cilents.
3).It adopts the positioning module to ensure the casting label precise,rapid and stable.
4).It not only has a highly precise postion for casting label,but also withstand the perfect shape of the bottle after shrinkage.
3.Main Technical Parameters：
1)Power:3kw
2)Voltage:1P 220V 50HZ
3)Diameter of bottle:Ø28- Ø125mm
4)Applicable Height of Label:30-250mm
5)Applicable Thickness of Label:0.03-0.13mm
6)Applicable Internal Diameter of Tube:5"-10"mm adjust freely
7)Production Cycle:100-150bottles/min
8)Machine Dimensions:3000 x 1200 x 2080mm
9)Weight:1050Kg
1.Introduction：
All-cover type stainless steel host machine:the whole machine is waterproof as well as rustproof,Adjustable cutter head:unquely cyclotron cut-off,double sided cutting edge with a long service life.
2.Features：
1).Doubel head PVC shrink sleeve labeling machine can label bottle body and neck at the same time,which can reach max.capacity of 2*450 bottle per minute.
2).Double head shrink sleeve labeling machine can be used in two ways.It not only reduces a trapping label machine,but also proves as cost effective for our cilents.
3).It adopts the positioning module to ensure the casting label precise,rapid and stable.
4).It not only has a highly precise postion for casting label,but also withstand the perfect shape of the bottle after shrinkage.
3.Main Technical Parameters：
1)Power:3kw
2)Voltage:1P 220V 50HZ
3)Diameter of bottle:Ø28- Ø125mm
4)Applicable Height of Label:30-250mm
5)Applicable Thickness of Label:0.03-0.13mm
6)Applicable Internal Diameter of Tube:5"-10"mm adjust freely
7)Production Cycle:100-150bottles/min
8)Machine Dimensions:3000 x 1200 x 2080mm
9)Weight:1050Kg

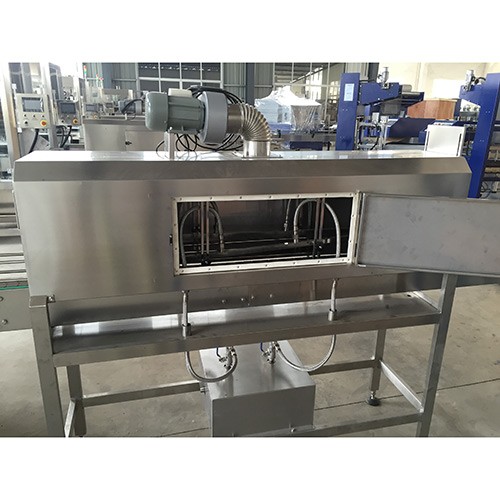

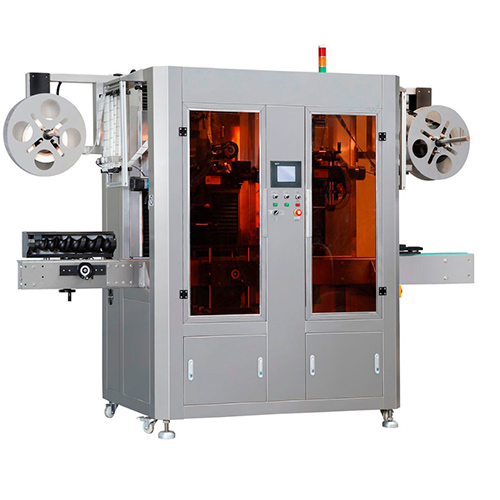

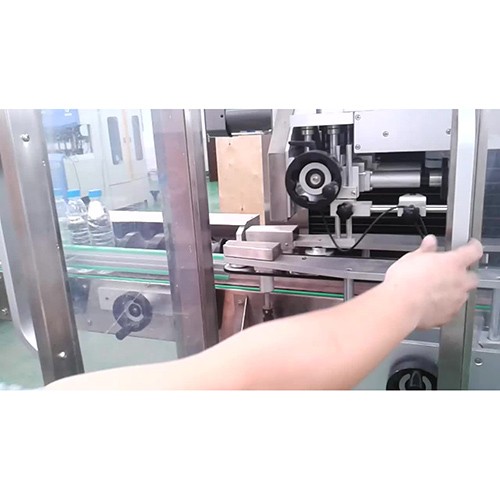

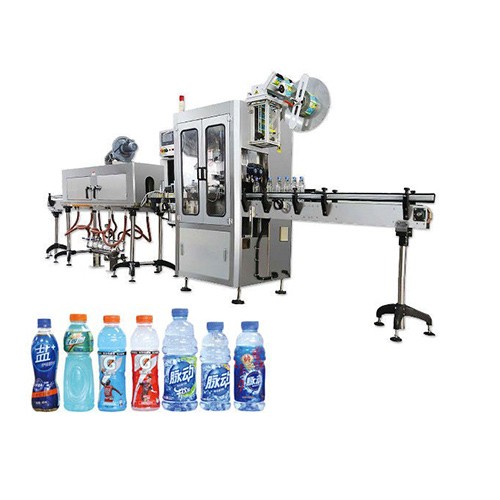

double head shrink sleeve labeling machine picture for reference:
More information for double head shrink sleeve labeling machine .Please browse my youtube channel:https://www.youtube.com/watch?v=773KXngRbxM&list=PLAijjmGaBBAzPnL-Nh3zIauzW0Q5v6R-T&index=23
