Description
5L detergent filling machine
Introduction：
Intellectual High Viscosity piston Filling Machine is the new-generation improved volumetric filling machine which is suitable for detergent,shampoo,laundry detergent and high viscosity material. The whole machine uses the in-line structure and it is driven by the servo motor. Volumetric filling principle can realize the high precision of filling. It is controlled by the PLC,human interface and easy operation,The machine is equipped with electric scale weight feedback system which makes the volume adjustment easier
Features:
2.1 It is controlled by the PLC and driven by the servo motor to control the double screw transmission structure which can realize high-precision filling,It uses separate ball screw to link guide pillar and lifting beam,Change-over of the ball screw is very simple,only one man can finish the change and no need to disassemble the lifting beam,The other suppliers install the screw between the lifting beam which makes change-over more hard,it requires coordination work of several men
Main Technical Parameter:
1. Capacity: 3000 bottles/hr.（5L high viscosity as medium）
2. Applicable Range: Φ（40-100）*（80－230）mm Round Bottle
(40－100) * (40－100) * (80－230) mm Flat / Square Bottle
3. Filling Range：500ml-5L
4.Filling head: 12
5. Precision：±0.5%
6. Air Pressure：0.6～0.8 MPa
7. Power Source：～380V、50Hz
8. Power：2.5KW
9. External Dimension：3600×1350×2300mm
10. Weight：About 2300Kg
Introduction：
Intellectual High Viscosity piston Filling Machine is the new-generation improved volumetric filling machine which is suitable for detergent,shampoo,laundry detergent and high viscosity material. The whole machine uses the in-line structure and it is driven by the servo motor. Volumetric filling principle can realize the high precision of filling. It is controlled by the PLC,human interface and easy operation,The machine is equipped with electric scale weight feedback system which makes the volume adjustment easier
Features:
2.1 It is controlled by the PLC and driven by the servo motor to control the double screw transmission structure which can realize high-precision filling,It uses separate ball screw to link guide pillar and lifting beam,Change-over of the ball screw is very simple,only one man can finish the change and no need to disassemble the lifting beam,The other suppliers install the screw between the lifting beam which makes change-over more hard,it requires coordination work of several men
Main Technical Parameter:
1. Capacity: 3000 bottles/hr.（5L high viscosity as medium）
2. Applicable Range: Φ（40-100）*（80－230）mm Round Bottle
(40－100) * (40－100) * (80－230) mm Flat / Square Bottle
3. Filling Range：500ml-5L
4.Filling head: 12
5. Precision：±0.5%
6. Air Pressure：0.6～0.8 MPa
7. Power Source：～380V、50Hz
8. Power：2.5KW
9. External Dimension：3600×1350×2300mm
10. Weight：About 2300Kg

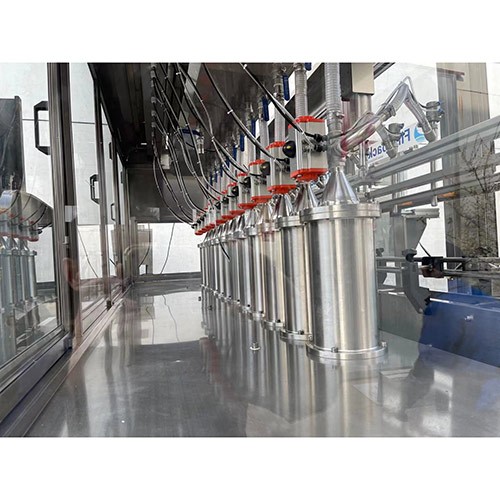

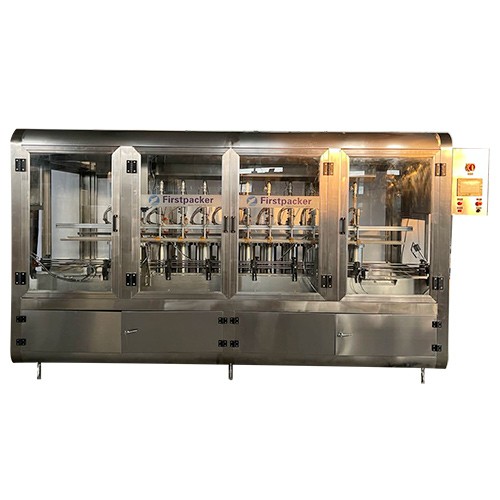

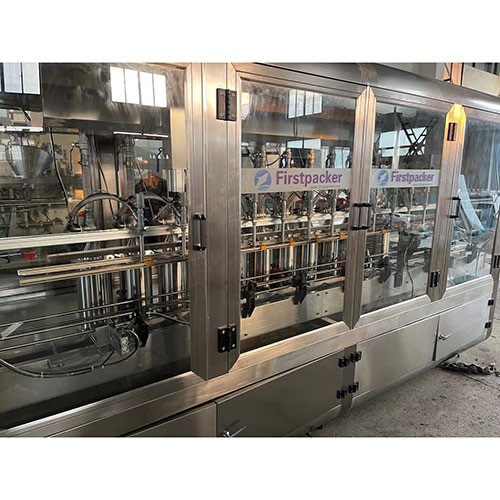

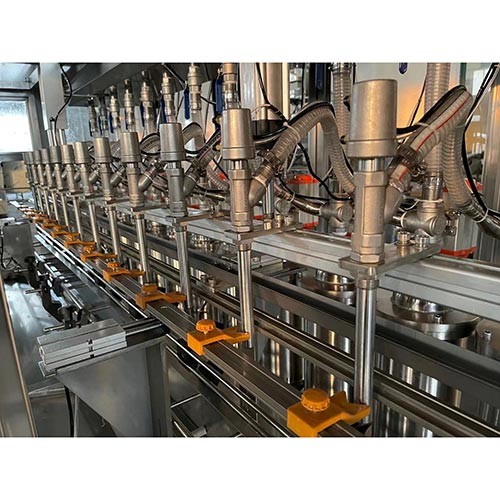

Picture for 5L detergent filling machine for reference :
