Description
Round bottle self adhesive labeling machine
1.Introduction：
round bottle self adhesive labeling machine is making up with the label pressure structure, picking-up mechanism, frame, bottle-separating structure, conveyor, adjusting structure and electrical cabinet. It is suitable for self-adhesive labeling of vaccine vial glass bottle,syrup,oral liquid round bottles.
2.Features：
1)The servo motor labeling structure and PLC control make sure the high speed and precision of labeling.
2)The labeling part uses the handle adjusting, it can also adjust for the bottles with conicity.
3)It uses unique emery drive roll structure with good friction which guarantee the stability of labeling
3.Technical Parameters：
1)Applicable Bottle Diameter：Φ35-95mm
2)Label Height：20-140mm
3)Label Length：50-320mm
4)Labeling Precision：±1mm
5)Capacity：≤7200 Bottles/min
6)Power Source：～220V、50HZ
7)Power：2.2KW
8)Weight：About 350Kg
9)External Dimension：2500×1000×1700mm（L×W×H）
1.Introduction：
round bottle self adhesive labeling machine is making up with the label pressure structure, picking-up mechanism, frame, bottle-separating structure, conveyor, adjusting structure and electrical cabinet. It is suitable for self-adhesive labeling of vaccine vial glass bottle,syrup,oral liquid round bottles.
2.Features：

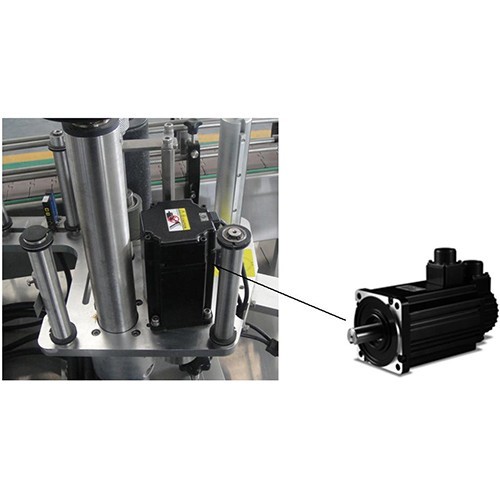

1)The servo motor labeling structure and PLC control make sure the high speed and precision of labeling.
2)The labeling part uses the handle adjusting, it can also adjust for the bottles with conicity.

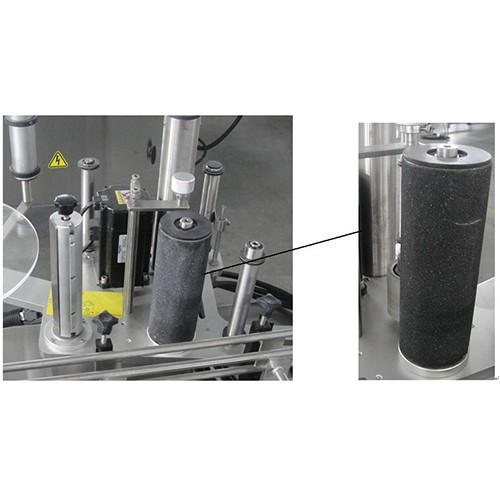

3)It uses unique emery drive roll structure with good friction which guarantee the stability of labeling
3.Technical Parameters：
1)Applicable Bottle Diameter：Φ35-95mm
2)Label Height：20-140mm
3)Label Length：50-320mm
4)Labeling Precision：±1mm
5)Capacity：≤7200 Bottles/min
6)Power Source：～220V、50HZ
7)Power：2.2KW
8)Weight：About 350Kg
9)External Dimension：2500×1000×1700mm（L×W×H）

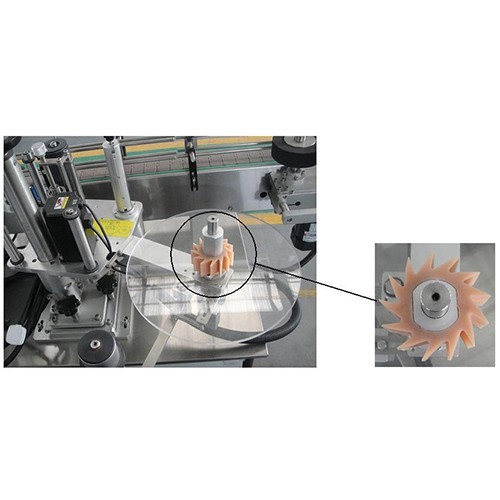

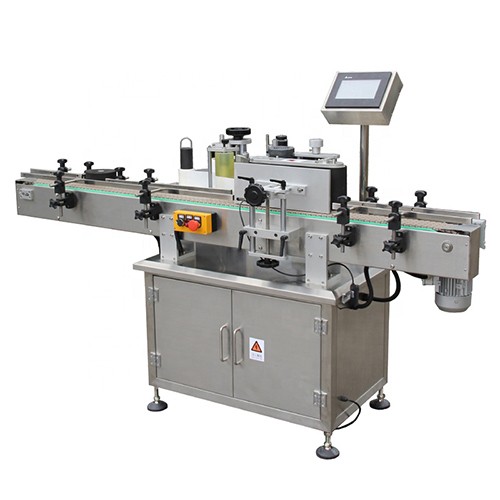

Round bottle self adhesive labeling machine picture for reference:
More information for round bottle self adhesive labeling machine,please browse Our youtube channel:https://www.youtube.com/watch?v=6WsChBlfUL4&list=PLAijjmGaBBAxgPjqcS37seb519t5aT2a9&index=81
