Description

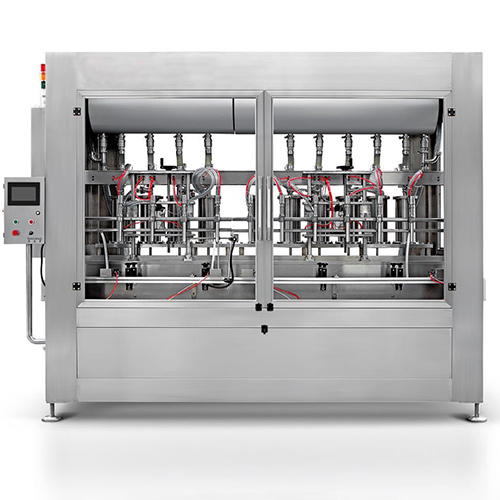

5L edible oil piston filling machine
1.Introduction：
Intellectual High Viscosity 5L edible oil piston filling machine is the new-generation improved volumetric filling machine which is suitable for sunflower oil,edible oil,soybean oil and some viscosity products and so on.
2.Feature:
2.1 It is controlled by the PLC and driven by the servo motor to control the double screw transmission structure which can realize high-precision filling,It uses separate ball screw to link guide pillar and lifting beam,Change-over of the ball screw is very simple,only one man can finish the change and no need to disassemble the lifting beam.
2.2 cylinder disassembling and the sealing parts cleaning inside. It avoids the pollution to the machine when pull out the cylinder to change the sealing parts. For this structure can really avoid the leakage when changing the sealing part.
3.Main Technical Parameter:
1)Capacity: 4000-5000 bottles/hr.（5L edible oil as medium）
2)Applicable Range: Φ（40-100）*（80－230）mm Round Bottle
(40－100) * (40－100) * (80－230) mm Flat / Square Bottle
3)Filling Range：500ML-5L
4)Filling head: 12
5)Precision：±0.5%
6)Air Pressure：0.6～0.8 MPa
7)Power Source：～380V、50Hz
8)Power：2.5KW
9)External Dimension：3800×1150×2300mm
10)Weight：About 2500Kg
1.Introduction：
Intellectual High Viscosity 5L edible oil piston filling machine is the new-generation improved volumetric filling machine which is suitable for sunflower oil,edible oil,soybean oil and some viscosity products and so on.
2.Feature:
2.1 It is controlled by the PLC and driven by the servo motor to control the double screw transmission structure which can realize high-precision filling,It uses separate ball screw to link guide pillar and lifting beam,Change-over of the ball screw is very simple,only one man can finish the change and no need to disassemble the lifting beam.
2.2 cylinder disassembling and the sealing parts cleaning inside. It avoids the pollution to the machine when pull out the cylinder to change the sealing parts. For this structure can really avoid the leakage when changing the sealing part.
3.Main Technical Parameter:
1)Capacity: 4000-5000 bottles/hr.（5L edible oil as medium）
2)Applicable Range: Φ（40-100）*（80－230）mm Round Bottle
(40－100) * (40－100) * (80－230) mm Flat / Square Bottle
3)Filling Range：500ML-5L
4)Filling head: 12
5)Precision：±0.5%
6)Air Pressure：0.6～0.8 MPa
7)Power Source：～380V、50Hz
8)Power：2.5KW
9)External Dimension：3800×1150×2300mm
10)Weight：About 2500Kg

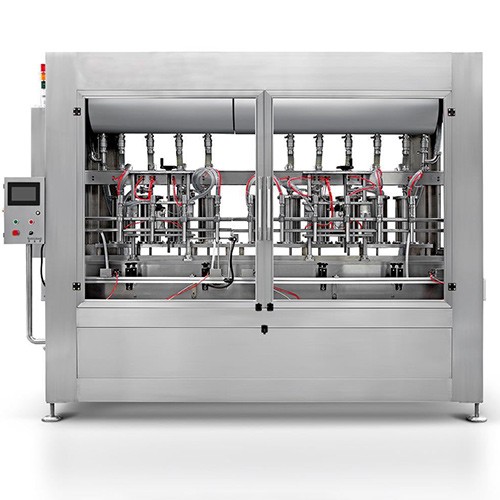

5L edible oil piston filling machine picture for reference:
More information,please browse of youtube channel:https://www.youtube.com/watch?v=QclkXfzcRTY&list=PLAijjmGaBBAyxeDU8Wsoyzq12aca-AKxK&index=15
