High speed chewing gum 32 channel counting machine
1.Introduction：
Wide applicability, used for chewing gum,tobacco snus,candy,chocolate bean. capsules, gels (including abnormal gels, transparent gels and opaque gels) pills and most solid granules.
2.Features：
1)Hopper mouth of the special structure, to prevent the materials jam, small mouth bottle can quickly bottling.(Optional)
2)High-degree of automatic, no bottle will not count and fill. Automatically remove bottles of filling abnormalities and a certain size broken tablets. Self-diagnose errors and stop working to make alarm at errors.
3.Technical parameter:
1)Counting Speed:12000 pieces/minute
2)Hopper capacity:Approx. 54 liters
3)Bottle height range:40mm-240mm
4)Bottle neck diameter:Φ25- 40 mm ( customized based on the requirements )
5)Bottle body diameter:Φ45 mm–100 mm ( customized based on the requirements )
6)Power source & consumption:3.5KW, 220v, single phase, 50-60HZ（Optional）
7)Compressed air pressure:87 Psi (6 Kgs/ cm2)
8)Dimensions:2800mm×1400mm×1665 mm ( Length × Width × Height )
9)Weight 1050kg
10)Working direction:Left → Right (or Right → Left)
1.Introduction：
Wide applicability, used for chewing gum,tobacco snus,candy,chocolate bean. capsules, gels (including abnormal gels, transparent gels and opaque gels) pills and most solid granules.
2.Features：
1)Hopper mouth of the special structure, to prevent the materials jam, small mouth bottle can quickly bottling.(Optional)
2)High-degree of automatic, no bottle will not count and fill. Automatically remove bottles of filling abnormalities and a certain size broken tablets. Self-diagnose errors and stop working to make alarm at errors.
3.Technical parameter:
1)Counting Speed:12000 pieces/minute
2)Hopper capacity:Approx. 54 liters
3)Bottle height range:40mm-240mm
4)Bottle neck diameter:Φ25- 40 mm ( customized based on the requirements )
5)Bottle body diameter:Φ45 mm–100 mm ( customized based on the requirements )
6)Power source & consumption:3.5KW, 220v, single phase, 50-60HZ（Optional）
7)Compressed air pressure:87 Psi (6 Kgs/ cm2)
8)Dimensions:2800mm×1400mm×1665 mm ( Length × Width × Height )
9)Weight 1050kg
10)Working direction:Left → Right (or Right → Left)

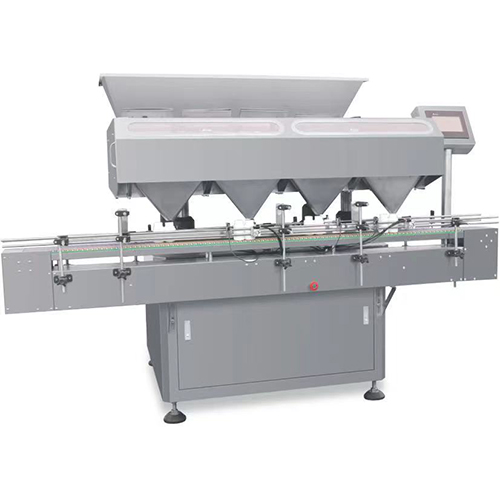

Automatic chewing gum 32 channel counting machine picture for reference:
