PESTICIDE POWDER HFFS POUCH PACKING MACHINE
Introduction:
QC-110 Pesticide powder pouch packing machine contains motor film-releasing,film forming,,bottom sealing,vertical sealing,cutting,pouch opening and filling, pouch transferring and top sealing. It can realize automatic powder, granule, SC, EC, AS filling powder with changing the filling device. The whole machine uses SUS304 which has the feature of perfect anti-corrosion, The organic glass cover can prevent the flowing of dust which is more environmental-friendly.
Main Technical Parameters.
1)Capacity : 40 pouches/min
2)Pouch Size : Width: 60-130mm，Height: 80-180mm
3)Volume: 2-100 gram
4)Precision: ±1%
5)Inner Diameter: Φ70-80mm
6)Outer Diameter: ≤Φ500mm
7)Power Source; Three Phase AC380V、50HZ
8)Power: 3.5KW
9)External Dimension: 1800×945×1550mm（L×W×H）
10)Weight: 1000KG
Introduction:
QC-110 Pesticide powder pouch packing machine contains motor film-releasing,film forming,,bottom sealing,vertical sealing,cutting,pouch opening and filling, pouch transferring and top sealing. It can realize automatic powder, granule, SC, EC, AS filling powder with changing the filling device. The whole machine uses SUS304 which has the feature of perfect anti-corrosion, The organic glass cover can prevent the flowing of dust which is more environmental-friendly.
Main Technical Parameters.
1)Capacity : 40 pouches/min
2)Pouch Size : Width: 60-130mm，Height: 80-180mm
3)Volume: 2-100 gram
4)Precision: ±1%
5)Inner Diameter: Φ70-80mm
6)Outer Diameter: ≤Φ500mm
7)Power Source; Three Phase AC380V、50HZ
8)Power: 3.5KW
9)External Dimension: 1800×945×1550mm（L×W×H）
10)Weight: 1000KG

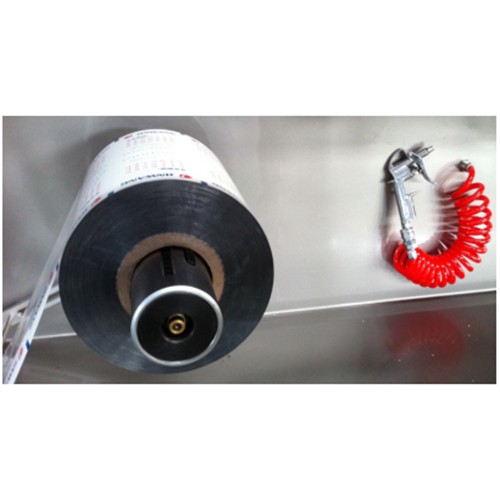

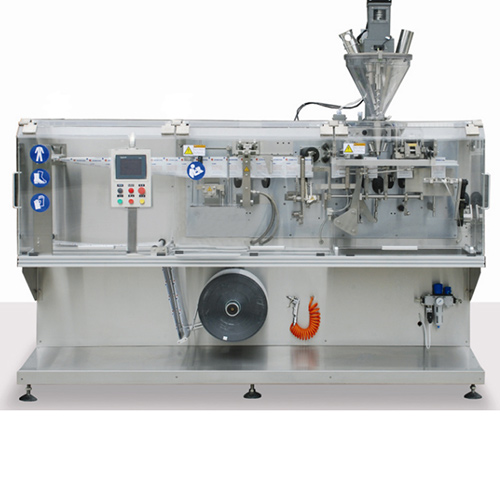

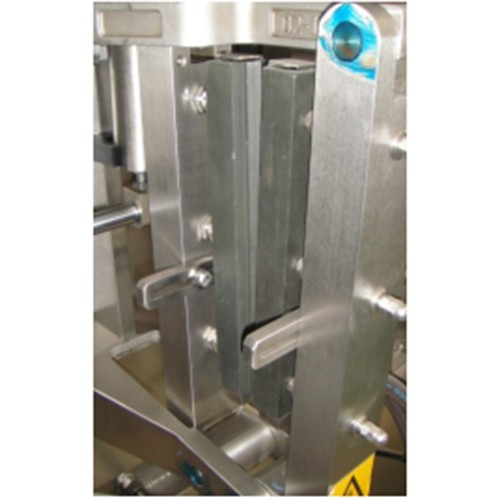

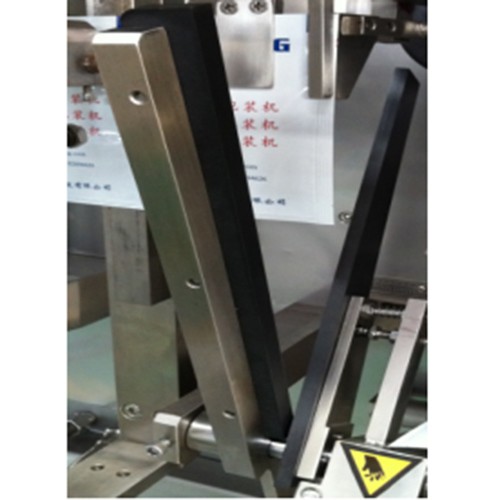

PESTICIDE POWDER HFFS POUCH PACKING MACHINE PICTURE FOR REFERENCE:
