Description
Introduction：

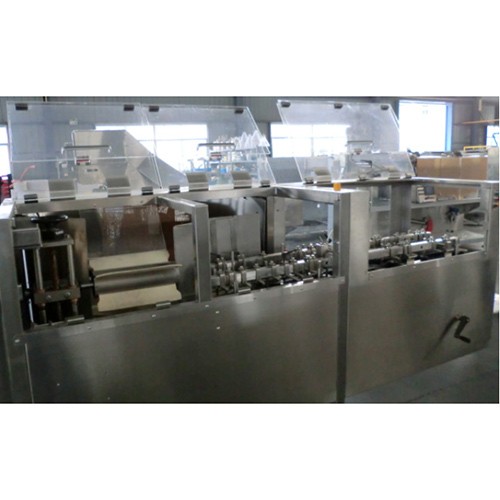

QC-600B Automatic Bottle Unscrambler is the structure of round plate and many sections of bottle unscrambling belts, It can arrange the disordered empty plastic bottles into good order. The highest speed reaches 200bottles/min. It will automatically feed the bottles if there is not enough empty bottles and it will automatic stop if the bottles are full. Do not need to change the mould when changing different size of bottles, only need to adjust the space according to the marks. The machine saves the energy and raises the capacity. The automatic stop prolongs the lifetime of the machine.
Features：
2.1 Simple structure and easy operation. When changing different bottle size, you do not need to change anything, you only need to change the belt in the bottle hopper and adjust the space of the unscrambling structure.
2.2 The whole machine is covered with organic glass, you can open all the cover for easy adjustment.
2.3 All the organic glass cover is installed with the sensor, The machine can start when all the organic glass cover are closed, The machine will stop when any of the door is open.

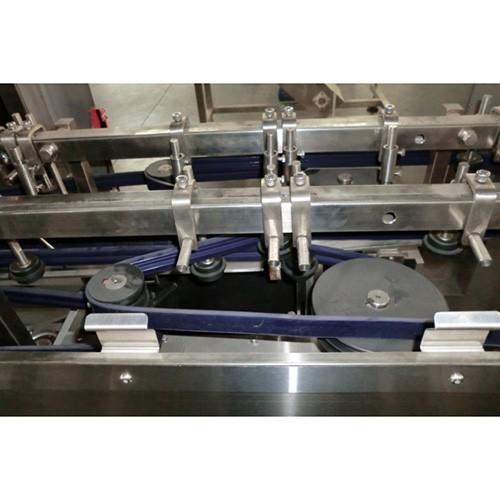

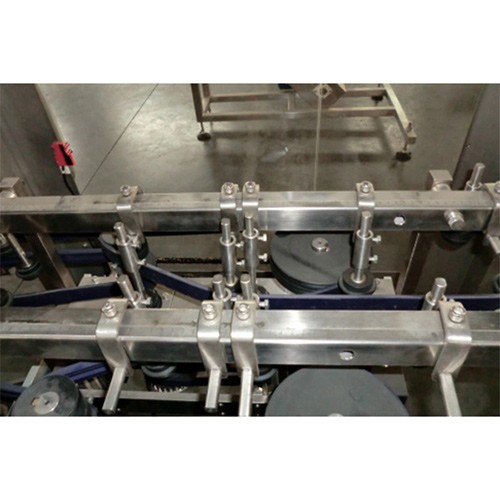

2.4 The connecting belt in the machine are shaped in one time, not easy to broken.

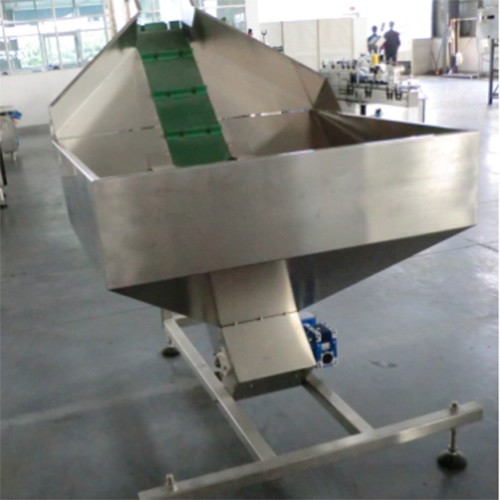

2.5 Automatic bottle elevating function, you only need to put the bottles in the bottle elevator, a sensor is installed in the rotary plate, it will automatically elevating the bottles when there is not enough bottle, it will automatically start when the bottles are enough.
Main Technical Parameters：
1.Unscrambling Speed：≤ 200 bottles/min
2.Applicable Bottle Diameter：Φ45－90mm
3.Applicable Bottle Height：80-240mm
4.Air Pressure：0.5～0.7 MPA
5.Power Source：～220V、50HZ
6.Power：1.5KW
7.Bottle Unscrambler External Dimension：2600×1500×1500mm（L×W×H）
8.Bottle Elevator External Dimension：2200×1200×1900mm（L×W×H）
9.Weight：about 450Kg
