Grabing Carton Case Packing Machine

Description

Grabing Carton Case Packing Machine
1.Introduce:

This machine is applicable for the grabing carton case packer and the regular round and flat glass and plastic bottle. It realizes the auto-secondary bottle packing , which can applies to the auto-production in foods, Dishwashing,Hand sanitizer,daily chemicals,medicines and pesticides industries,etc.

2.Main Techincal Parameters
1)Carton size L:200-500×W:150-400×H:100-450 mm
2)Power source 220V/380V;50/60HZ
3)Machine power 3.5kw
4)Air source 0.6Mpa clean and stable compressed air
5)Production capacity 4-8 cartons/min;8-16 cartons/min (according to the carton size)
6)Machine dimension ：L3500*W2000*H2300mm
7)Weight: 1500KG

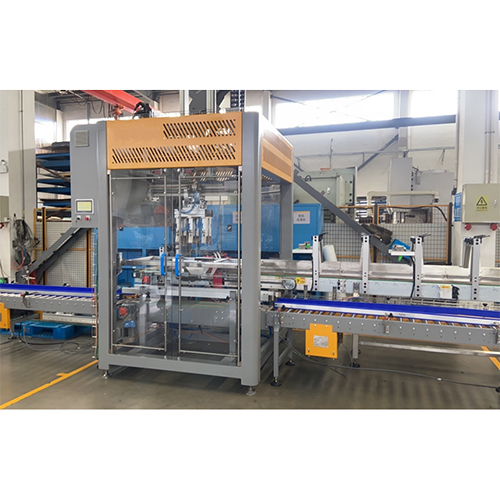

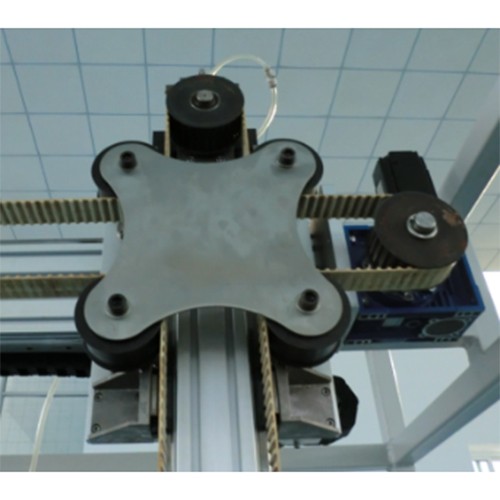

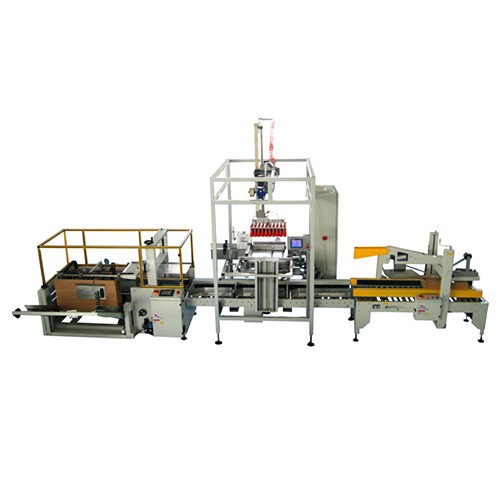

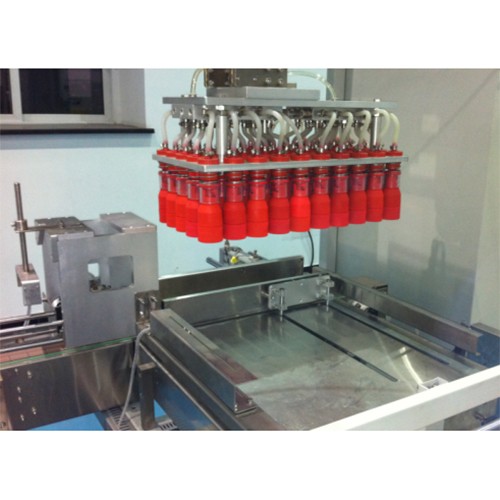

Grabing carton case packing machine picture for reference :
