Description
Tracking synchronous filling machine
1.Introduction：
Tracking synchronous filling machine,which can automatically complete a series of operations such as conveying, counting, positioning, filling, and discharging. It is suitable for filling viscous liquid like shampoo, liquid soap, body wash, agrochemical water agent, emulsion, emulsifier, suspension agent, and high viscosity material. The whole machine is a linear arrangement structure. The filling adopts a servo-driven tracking filling and volumetric metering filling principle to achieve high-precision filling measurement.
2.Features：
Tracking synchronous filling machine,PLC and touch screen are used for automatic control. It has the advantages of accurate measurement, advanced structure, stable operation, low noise, wide adjustment range, fast production speed and convenient specification replacement.
3.Main Technical Parameters：
1)Filling heads: 2pcs
2)Filling Volume: 100-1000ml
3)Capacity: 3000BPH
4)Accuracy: ≤±1%
5)Suitable bottle spec: ⌀50-100ml, H50-260mm, bottle mouth ≥ ⌀18mm
6)Power supply: AC220V; 50Hz globally customized
7)Power: 3Kw
8)Compressed air: 0.6-0.8Mpa
9)Dimension: 2000x1200x2000mm
10)Weight: 400Kg
1.Introduction：
Tracking synchronous filling machine,which can automatically complete a series of operations such as conveying, counting, positioning, filling, and discharging. It is suitable for filling viscous liquid like shampoo, liquid soap, body wash, agrochemical water agent, emulsion, emulsifier, suspension agent, and high viscosity material. The whole machine is a linear arrangement structure. The filling adopts a servo-driven tracking filling and volumetric metering filling principle to achieve high-precision filling measurement.
2.Features：
Tracking synchronous filling machine,PLC and touch screen are used for automatic control. It has the advantages of accurate measurement, advanced structure, stable operation, low noise, wide adjustment range, fast production speed and convenient specification replacement.
3.Main Technical Parameters：
1)Filling heads: 2pcs
2)Filling Volume: 100-1000ml
3)Capacity: 3000BPH
4)Accuracy: ≤±1%
5)Suitable bottle spec: ⌀50-100ml, H50-260mm, bottle mouth ≥ ⌀18mm
6)Power supply: AC220V; 50Hz globally customized
7)Power: 3Kw
8)Compressed air: 0.6-0.8Mpa
9)Dimension: 2000x1200x2000mm
10)Weight: 400Kg

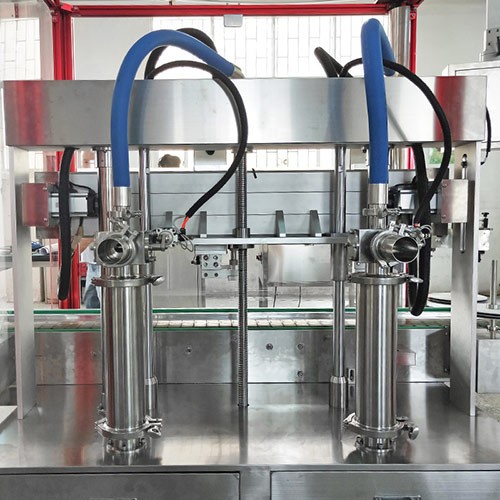

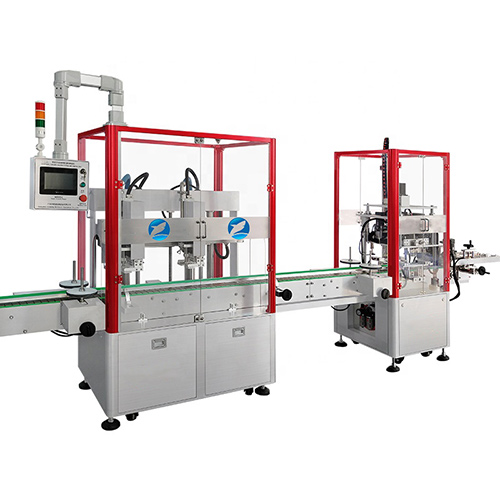

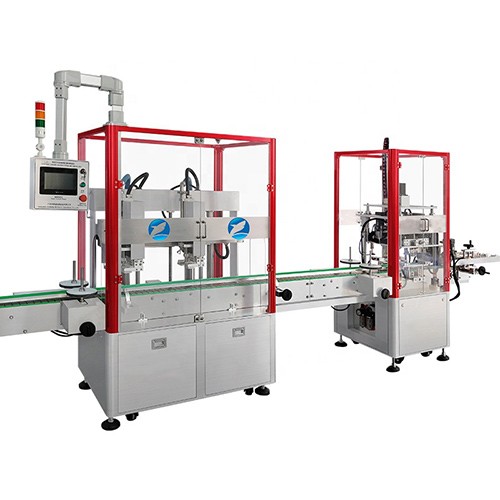

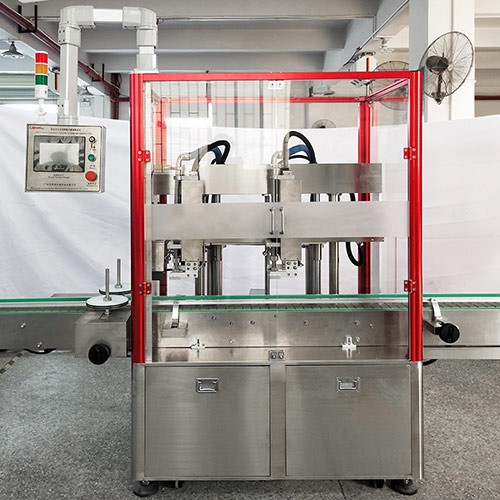

Tracking synchronous filling machine picture for reference:
More information for Tracking synchronous filling machine ,please browse Our youtube channel:
https://www.youtube.com/watch?v=jqCV6uHKz2o
